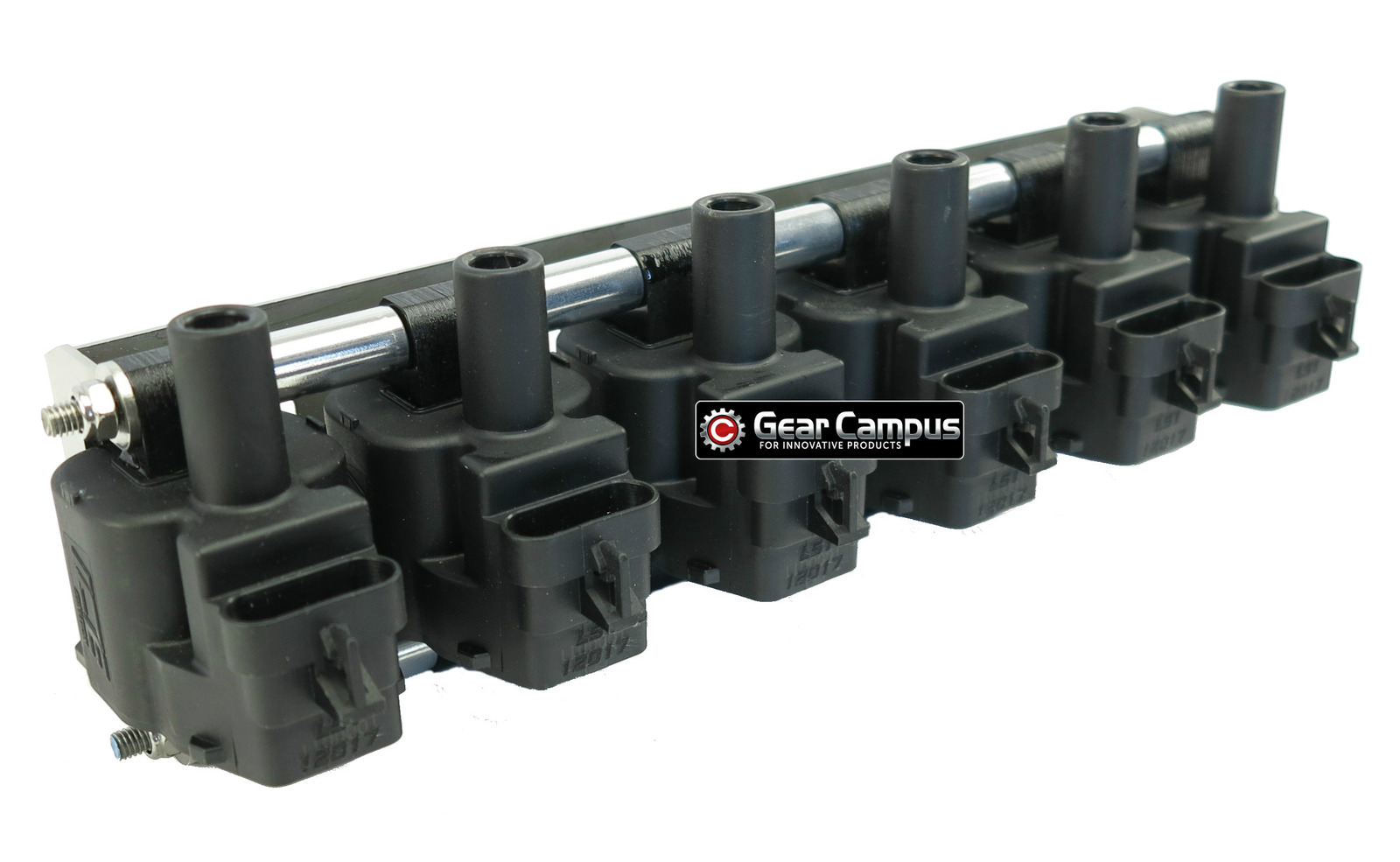

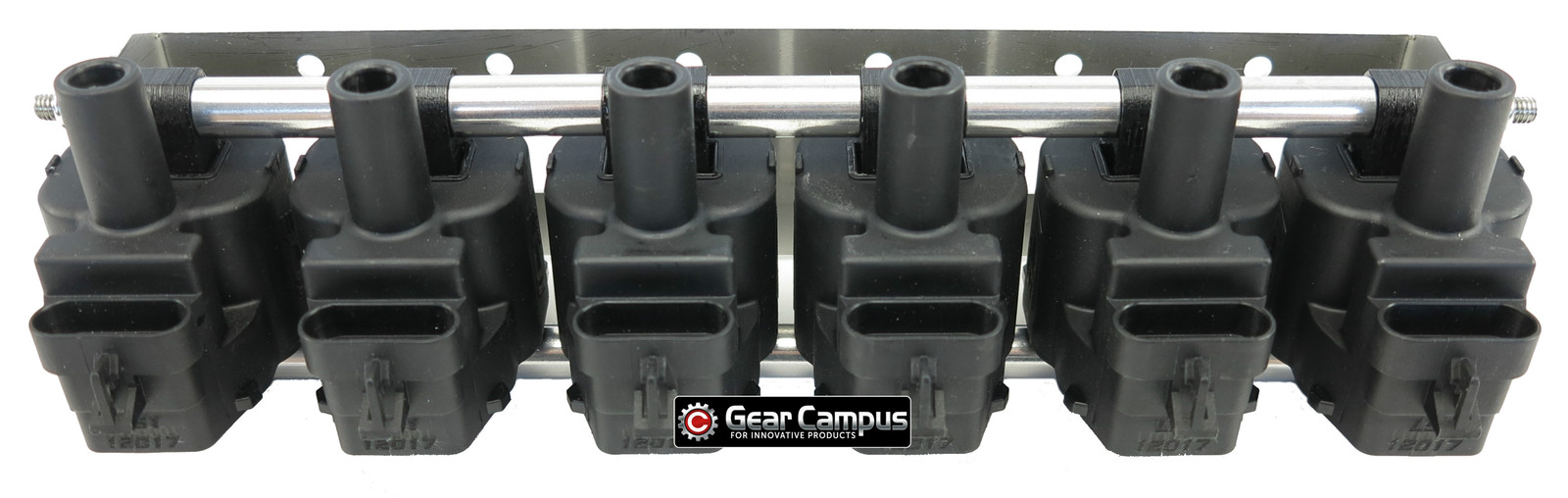

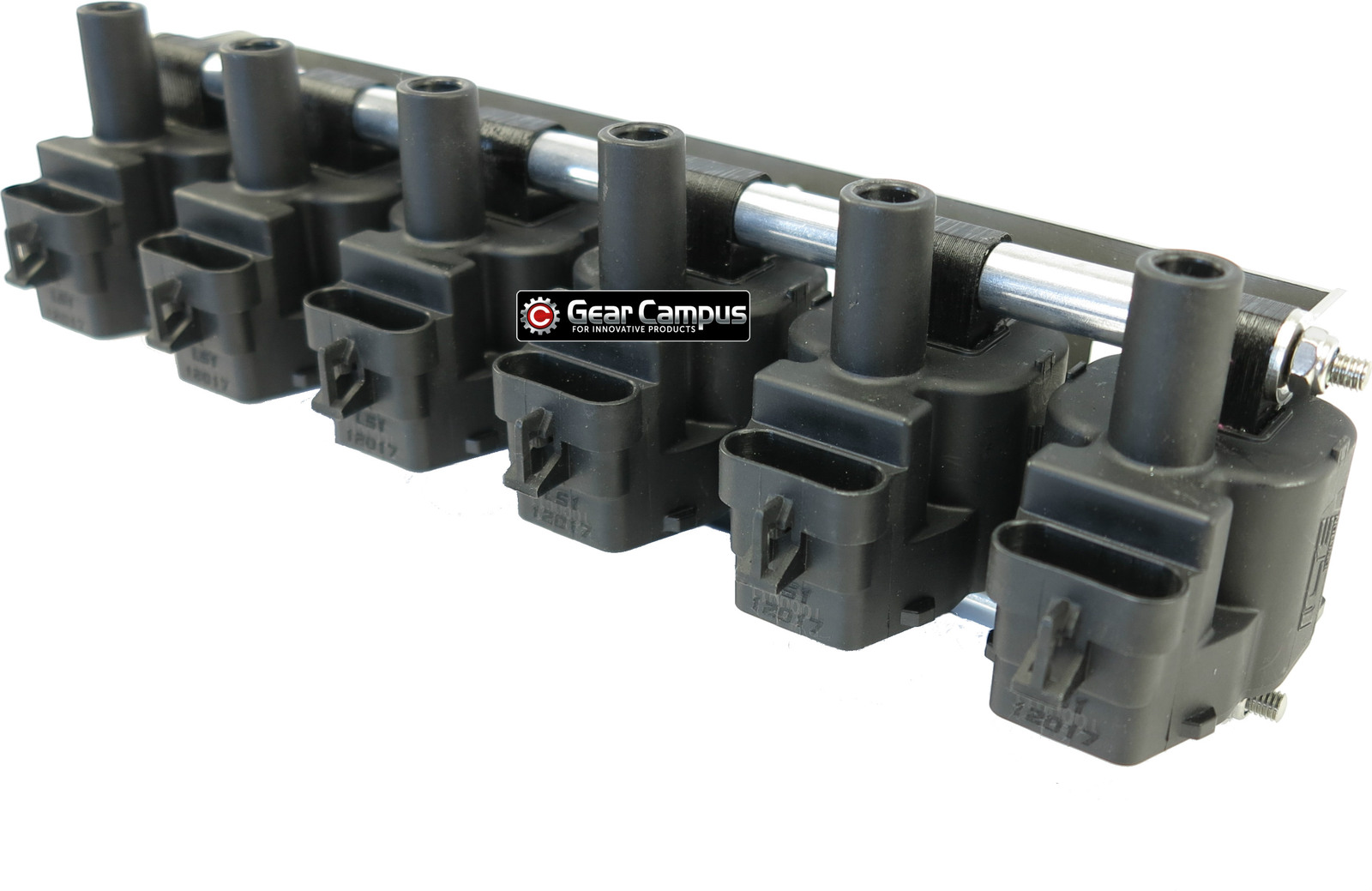

6 x 4300 Pro LS1 Race Coils, Leads & Bracket

Custom 6 Cyl Ignition Kit - Single Coil Per Cylinder Use

For on-road, off-road, race or marine applications

Available Options
Lead 1 Length (mm)
Lead 2 Length (mm)
Lead 3 Length (mm)
Lead 4 Length (mm)
Lead 5 Length (mm)
Lead 6 Length (mm)
Coil Boots
Lead Colour Choice

Calculate Shipping

Free Shipping - $0.00

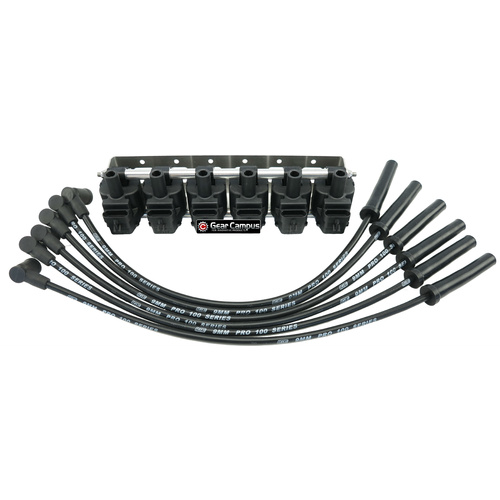

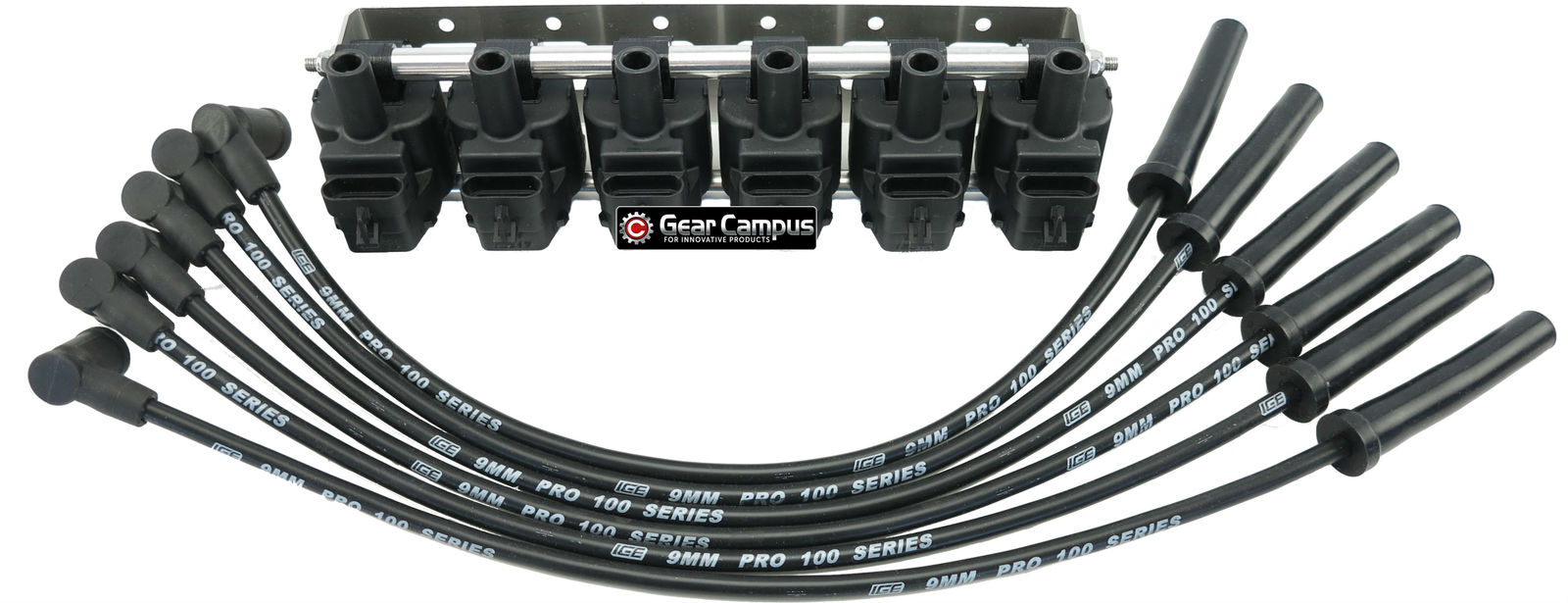

6 x ICE Ignition 4300 Pro LS1 Race Coils, 6 x ICE Ignition Pro 100 Leads & Mounting Bracket

Introducing the most powerful LS1 ignition coil on the market. The ICE Ignition 4300 Pro LS1 Race Coil delivers twice the energy of a standard ignition coil. It delivers the highest possible intensity and duration to support the most demanding ignition systems. This coil is ideal for most street, strip, race and boating applications.

6 x ICE Ignition Pro 100 9 mm Ignition Leads

Included in this kit is a complete set of ICE Ignition Pro 100 9 mm Leads. The Ignition Leads are customized to suit your needs. You can choose from the following options.

Lead Length for each Ignition Lead
Ignition Lead Colour Choice: BLACK (Default), RED or BLUE
45 Degree Coil Boots or90 Degree Coil Boots
Straight Spark Plug Boots ONLY

If you require an alternative Coil and/or Spark Plug Boot please contact us on 1300 722 580.

Please Note: As this is a custom product to suit your application we do not accept returns if you have changed your mind. If you have provided incorrect measurements there will be an additional cost to rectify this. We are here to help. If you are unsure please contact us first via eBay Message and we will assist you.

Lead Length, "Post to Post" measurement, Ignition Lead Colour Choice & Coil Boot Options

The lead length can be customised to suit your application. When ordering please provide the lead length using the "Post to Post" method. Measure from the post on the spark plug to the intended coil location allowing some slack in the lead. It is better to specify a longer lead length than a shorter one. If you are unsure please contact us on 1300 722 580 and we will assist you.

Lead Colour Choice

The default Ignition Lead Colour is BLACK. We can also supply the Ignition Leads in RED or BLUE. Please select the appropriate colour option when placing your order.

ICE Ignition LS1 Stainless Steel Mounting Bracket

Introducing the all-new mounting bracket for LS1 coils by ICE Ignition. Made from marine grade stainless steel they are made to suit the ICE Ignition 4300 Pro LS1 Race Coils. the kit includes the mounting frame, spacers and hardware to secure the coils to the bracket.

Please Note: Mounting bolts to secure the bracket to your car are not included.

WHAT'S IN THE BOX?

* 6 x ICE Ignition 4300 Pro LS1 Race Coils

* 6 x ICE Ignition Pro 100 9 mm Leads

* 1 x ICE Ignition LS1 Mounting Bracket

* LS1 Dwell Table

* 2 x ICE Ignition stickers

(4300-6-L)

Product Features & Benefits

Delivers twice the energy of a standard LS1 coil
Ideally suited to the Nissan RB30DET in the Nissan Skyline and Holden VL Commodore.
Withstands the vibrations induced from being under the hood
Delivers maximum voltage required for the most demanding engine applications
Extra long life under the most demanding road, race or marine applications.

**ICE Ignition 4300 Pro LS1 Race Coil Specifications**
Coil width:	90 mm
Coil height:	85 mm
Coil weight:	420 grams

SKU	4300-6-L
Brand	ICE Ignition
Shipping Weight	5.1000kg
Shipping Width	0.440m
Shipping Height	0.150m
Shipping Length	0.310m
Shipping Cubic	0.020460000m3
Unit Of Measure	mm

We offer a 3 year, non-transferable warranty covering defects in materials and workmanship if properly installed. If installation instructions have been followed and the product is found to be defective, Gear Campus will replace or arrange for repair if returned along with proof of purchase. This shall constitute the sole remedy of the purchaser and the sole liability of Gear Campus Pty Ltd to the extent permitted by law. The foregoing is exclusive and in lieu of all other warranties or representations whether expressed or implied, including any implied warranty of merchanability or fitness. In no event shall Gear Campus Pty Ltd be liable for special or consequential damages. Products must be returned as originally supplied. Warranty is void if products have been modified or tampered with in any way or installation instructions are not followed.
