7 AMP 2-STEP Boost Control Kit - Holden 253 - 308 with VN Heads, Forced Induction

This ICE Ignition kit is for the Holden 253-308 with VN Style Heads fitted with

  • Choose between FLAT TAPPET, CAST or STEEL BILLET ROLLER Camshafts.

  • Carburettor(s) - including electronic carburettor(s).

  • Turbo, Blower or Supercharger

  • No nitrous.

This ICE Ignition kit is ideal for most street & race cars. It provides precise control over boost through timing retardation. The Rev Limiter provides insurance against accidentally over-revving your engine. This kit can also be used with electronic carburettors that control "Air & Fuel" only. The Digital Inductive Spark technology delivers the most powerful spark and longest duration of any ignition system. More spark means greater tuneability, which leads to improved performance.

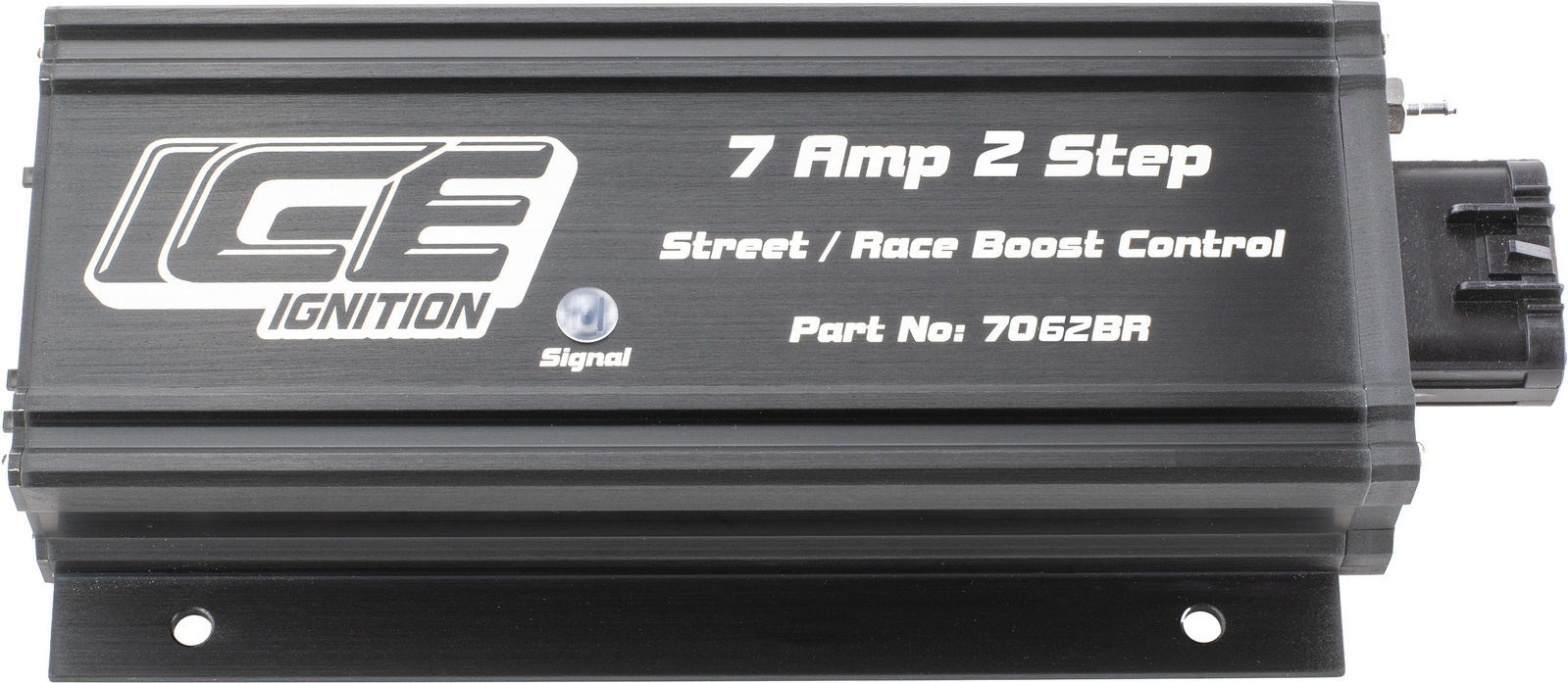

The ICE Ignition 7 AMP 2 STEP Boost Control Street/Race Series Control Box

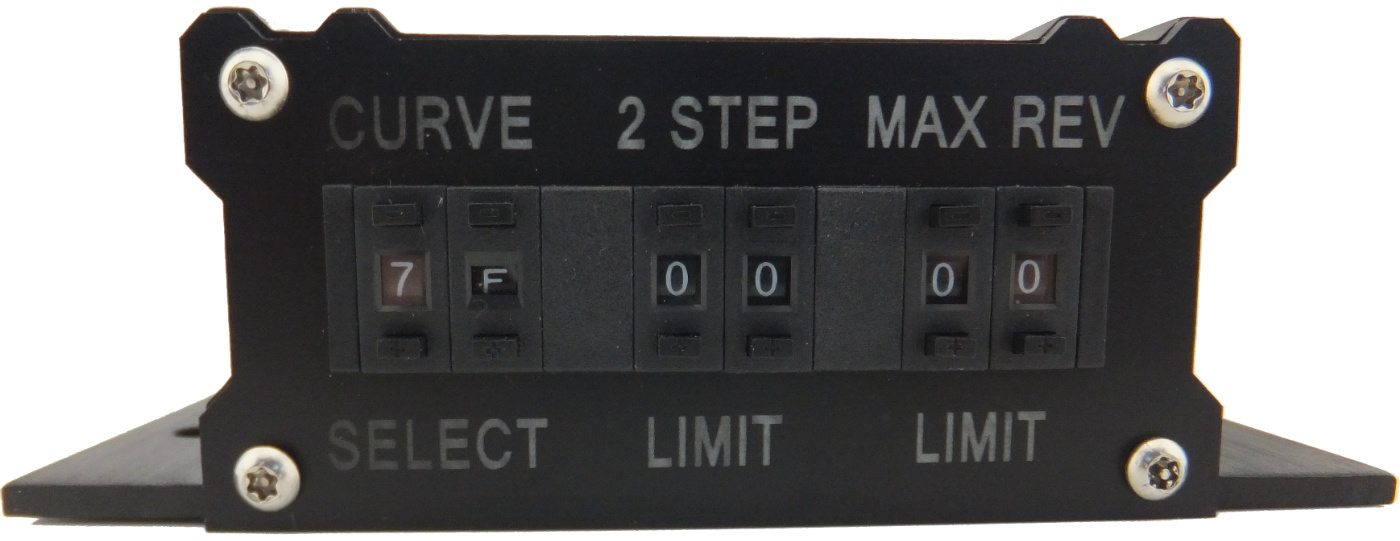

   ICE Ignition 7 AMP Street Series Control Box Rear View

The ICE Ignition 7062BR Street/Race Series Control Box features the following.

  1. 10 Pre-programmed Boost Control Curves - The push-button selectable curves enable fine boost control through timing retardation. With the ICE Ignition 7062BR, you can vary timing from 0.1 to 1.0 degrees of timing per pound of boost. The MAXIMUM degrees of boost retard possible is 22 degrees. It eliminates the need for distributor re-graphing when engine upgrades are introduced. It allows you to adjust total timing for changes in fuel quality.

  2. Manifold Absolute Pressure (MAP) Sensor - The MAP sensor detects when your engine is generating boost and will automatically retard timing depending on the amount of boost detected and the "Retard Select" position used.

  3. Rev Limiter (1-STEP)—This push-button selectable rev limiter is adjustable in 100 RPM increments. It provides great insurance against accidentally over-revving your engine by cutting out the spark.

  4.  Rev Limiter (2-STEP)—This push-button selectable rev limiter is adjustable in 100 RPM increments and is active when a constant 12 volts is applied to the white wire in the wiring loom. Connect this to a momentary switch to use as a launch control.

The controller must be mounted inside your car, NOT inside your engine bay. ICE Ignition recommends the use of NON-RESISTOR Spark Plugs

Why choose the ICE Ignition 7061BR Kit?

  • Precise control over timing under boost reduces the risk of detonation whilst maximising performance and efficiency.

  • The "Digital Inductive Spark" technology delivers the most powerful spark and longest duration of any ignition system.

  • It's ideal for most street-driven cars and provides excellent tunability.

  • Push-button selectable timing makes distributor re-graphs obsolete.

  • Push-Button selectable Rev Limiter protects your engine from being accidentally overrevved.

  • It can also be used with electronic carburettors that control "Air & Fuel" only.

  • More spark means greater tuneability, which leads to improved performance.

  • Three-Year Australian Warranty, made in Melbourne

Our Value-Add Service

Need help establishing a base tune for your engine? We can help with engine timing (i.e., base timing and curve selection), spark plug selection, and spark plug gap for all customers who purchase an ICE Ignition kit through Gear Campus. Please get in touch with us when you order your ICE Ignition kit.

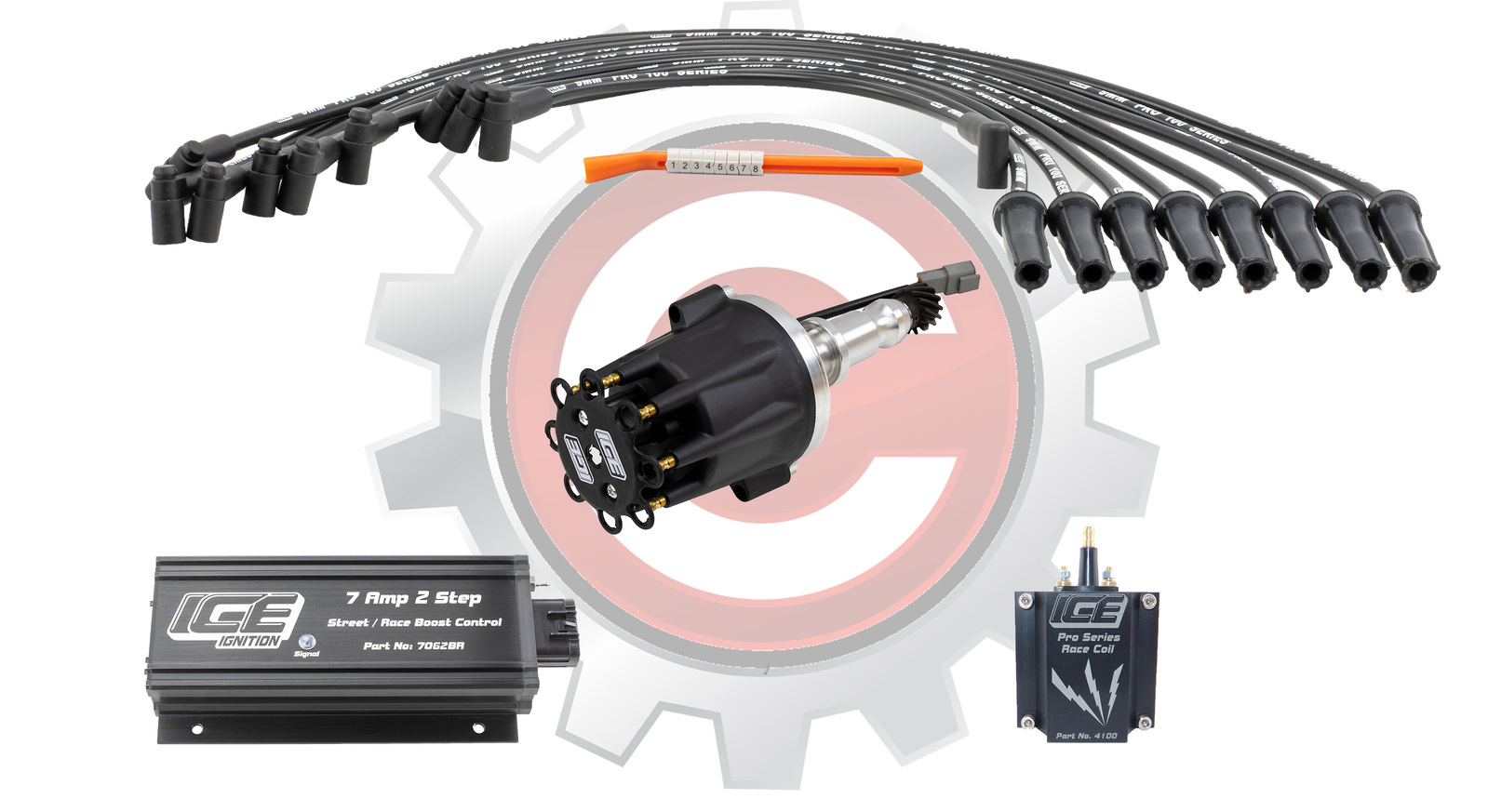

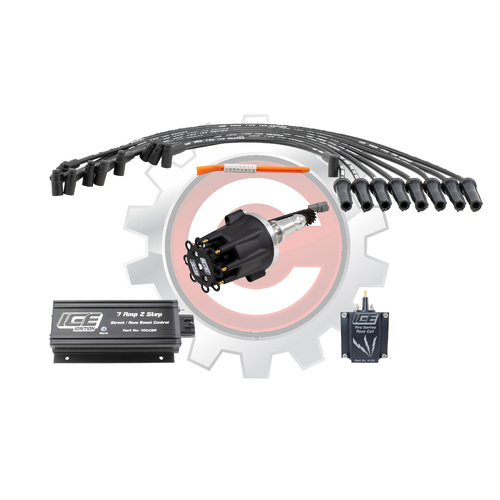

What's in the ICE Ignition Kit?

This ignition kit includes the following

  1. 7062BR Controller - 10 pre-defined push-button selectable retard curves, Manifold Absolute Pressure (MAP) sensor & a push-button selectable rev limiter

  2. ICE Ignition SMALL CAP (4" Diameter) Billet Distributor -  It's made from 6061 aircraft-grade aluminium and uses a “Hall Effect Sensor” to communicate with the Control Box.

    • If you prefer a large cap distributor (5" Diam.), please select this from the Options List. This is a no-cost option.

    • The distributor is fitted with a CAST Gear to suit a FLAT TAPPET Camshaft by default. If your engine has a CAST BILLET ROLLER or STEEL BILLET ROLLER, please select it from the Options List.

  3. ICE Ignition 9HOL807 Pro 100 9 mm leads (Black)—This is a "Plug & Play" lead set with STRAIGHT Spark Plug Boots. Lead fitment is AROUND THE VALVE COVERS. If a different lead set is required, please contact us.

  4. The ICE Ignition 4100 Pro Series Race Coil has twice the energy of a standard coil and is ideal for forced induction engines.

  5. Wiring Loom - It's approx. 2 metres long and is easy to install.

We offer a 3 year, non-transferable warranty covering defects in materials and workmanship if properly installed. A 2-year warranty applies where the product is being used primarily in a racing application. If installation instructions have been followed and the product is found to be defective, Gear Campus will replace or arrange for repair if returned along with proof of purchase. This shall constitute the sole remedy of the purchaser and the sole liability of Gear Campus Pty Ltd to the extent permitted by law.

The foregoing is exclusive and in lieu of all other warranties or representations whether expressed or implied, including any implied warranty of merchantability or fitness. In no event shall Gear Campus Pty Ltd be liable for special or consequential damages. Products must be returned as originally supplied. Warranty is void if products have been modified or tampered with in any way or installation instructions are not followed.

Product Features & Benefits

  • You will save money by not having to re-graph your distributor every time you upgrade your engine.
  • More spark and duration delivers greater tuneability leading to improved performance.
  • MAP sensor delivers improved fuel economy under cruising conditions.
  • Avoid engine pinging scenarios through bad fuel by instantly adjusting your engine's timing.

ICE Ignition 7 AMP 2 STEP Boost Retard Kit

Holden 253 to 308 with VN Heads

Engine Type: Holden 253-308 with VN Style Heads
Fuel Delivery: Carburettor(s) - including Electronic Carburettor(s)
Engine Setup: Turbo, Blown or Supercharged
Controller: 7 AMP 2-STEP Boost Retard
Controller Features: 10 boost curves, MAP Sensor & 2 Rev Limiters
Wiring Loom: Included, approx 2 meters long
Distributor Diameter: Approx 4"
Distributor Triggering: Hall Effect Sensor
Distributor Shaft: 4130 Chromoly
Distributor Gear: Cast Iron  Gear for Flat Tappet Cam
Distributor Cap Type: HEI / MALE Post
Dist. Plug Wire Retainer: Included
Spark Plug Boot Type:  Straight
Ignition Lead Diameter: 9 mm
Coil Type:  ICE Ignition 4100 Coil
Lead / Plug Wire fitment: Around valve covers
Lead Markers & install tool: Included













SKU IK72BRSIHOL807
Barcode # 2000000003931
Brand ICE Ignition
Shipping Weight 9.2000kg
Shipping Width 0.480m
Shipping Height 0.380m
Shipping Length 0.380m
Shipping Cubic 0.069312000m3
Unit Of Measure ea
