114mm SeaSucker White Vacuum Mount
The ideal mounting solution without drilling holes.
Will attach to steel, aluminium, glass, fibreglass, painted plaster and most non-skid surfaces
Secure Payment Methods
Calculate Shipping

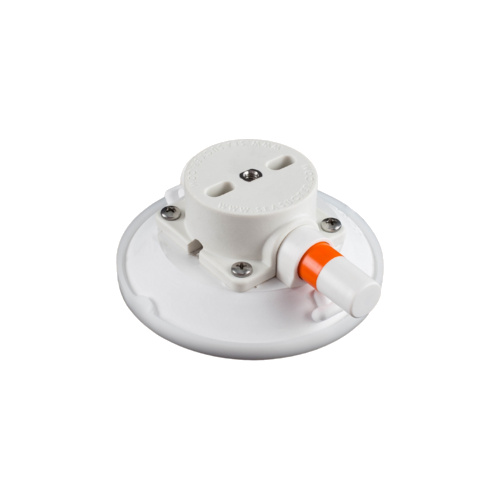

The 114 mm SeaSucker White Vacuum Mount
The SeaSucker 114 mm Black Vacuum Mount is an ideal way to mount accessories without drilling any holes! It is incredibly strong (pull-rated up to 45 kg; load-carrying capacity of 18 kg) and will attach to most non-skid or textured surfaces. Its built-in pump can generate a significant vacuum; coupled with a durable vacuum pad, it can maintain negative pressure for many days with the correct surface. Furthermore, the pump's orange indicator band serves as an early warning system, alerting when partial pressure is lost. A few pumps are all that is needed to return to maximum vacuum.
All metal parts are marine-grade stainless steel, including the pump spring, for extra durability in the saltwater environment. SeaSucker Vacuum Mounts have a cleverly designed housing enabling you to bolt almost anything to them.

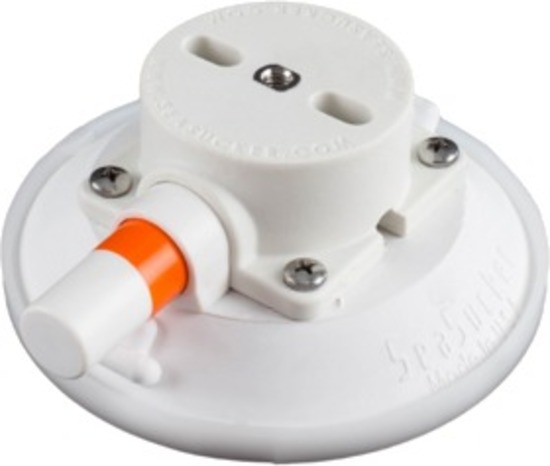

The SeaSucker Vacuum Mount Housing
Below is a detailed overview of the Standard Vacuum Mount Housing used on the 114 mm SeaSucker White Vacuum Mount. There are two methods of attachment available. You can use the 1/4-20" stainless steel centre thread in the centre of the housing to attach most devices. Alternatively, the most secure method is to use the two slots on either side of the 1/4-20" stainless steel centre thread. The slots will accept 1/4" Bolts and Nuts

WHAT'S IN THE BOX?
- 1 x 114 mm SeaSucker White Vacuum Mount
- 1 x 114 mm SeaSucker White Protective Cover
- SeaSucker Vacuum Mount User Guide
We offer a 1 year, non-transferable warranty covering defects in materials and workmanship. The warranty covers the defective product only and can be returned within 1 year of the date of original purchase to Gear Campus for replacement or repair. This shall constitute the sole remedy of the purchaser and the sole liability of Gear Campus Pty Ltd to the extent permitted by law. In no event shall Gear Campus Pty Ltd be liable for special or consequential damages.
A sales receipt must accompany warranty claims. If your product fails due to a manufacturing or workmanship defect our first option will be to repair the item, free of charge. If the product is not repairable, or if the cost of repairing the item exceeds the cost of a new one, we will replace it. If the item has failed due to a manufacturing defect, we will pay the return shipping charges.
Product Features & Benefits
- You will save money by not filling in holes every time; this can get very expensive!
- The cost of maintaining our vacuum mounts is very low; every part is replaceable, and the pump is fully serviceable.
- The one solution for many surfaces, including steel, aluminium, glass, fibreglass, painted plaster and some non-skid surfaces.
- If you change your mind, you can relocate the 114 mm Vacuum Mount in seconds without leaving any marks.
- The 114 mm Vacuum Mount is truly multi-purpose; use the same mount in your car, boat, caravan or around the home.
- Attach almost anything to the Vacuum Mount housing either through the ¼-20 centre thread or by using the top slots.
- Secure your favourite video and still camera using the ¼-20 stainless steel threaded insert to capture that perfect photo or video.
| Maximum Pull Rating: | 45 kg |
|---|---|
| Load Carrying Capacity: | 18.14 kg |
| Vacuum Mount Diameter: | 114 mm |
| Vacuum Mount Height when attached: | 45 mm |
| Vacuum Mount Height when not in use: | 52 mm |
| Housing Top Diameter: | 60 mm |
| Housing Height Only: | 33 mm |
| Housing Top Slot Width: | 7 mm |
| Housing Top Slot Length: | 14 mm |
| Housing Centre Thread: | ¼-20 |
| SKU | VM1001W |
| Barcode # | 810046210215 |
| Brand | SeaSucker |
| Shipping Weight | 0.6000kg |
| Shipping Width | 0.230m |
| Shipping Height | 0.080m |
| Shipping Length | 0.240m |
| Unit Of Measure | ea |
