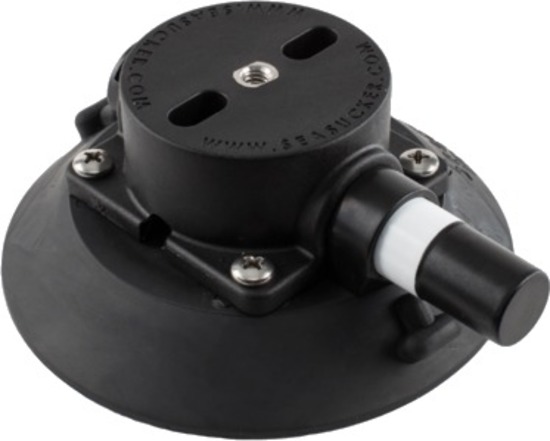

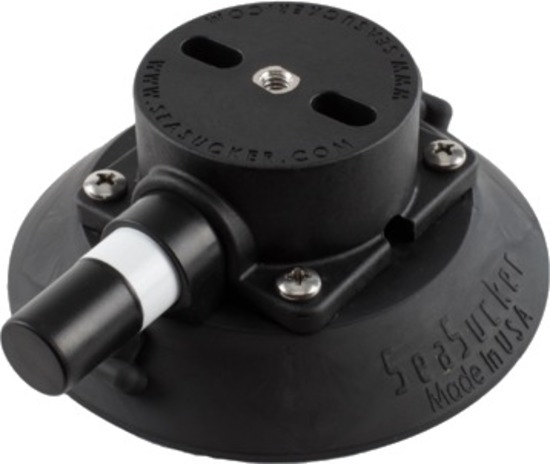

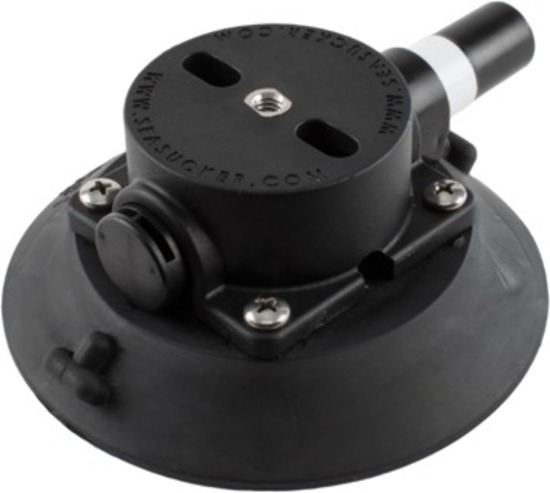

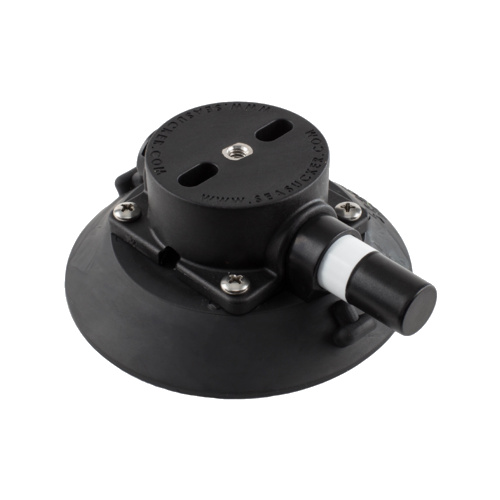

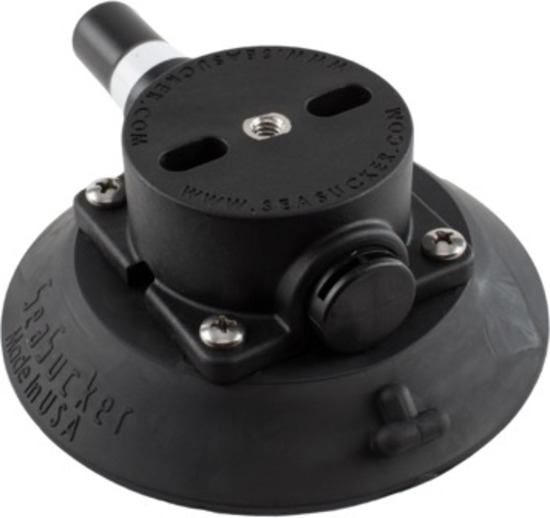

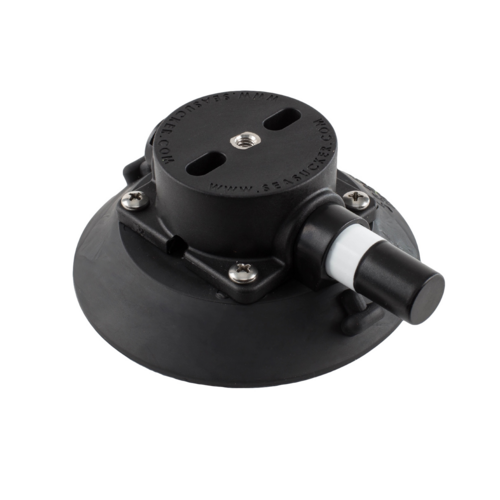

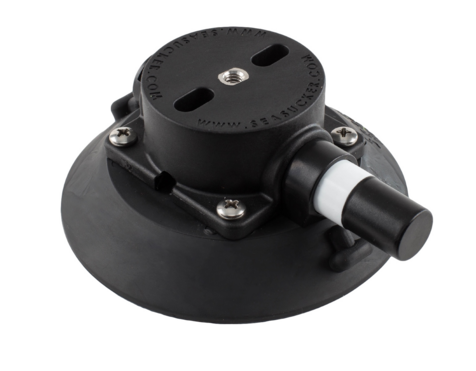

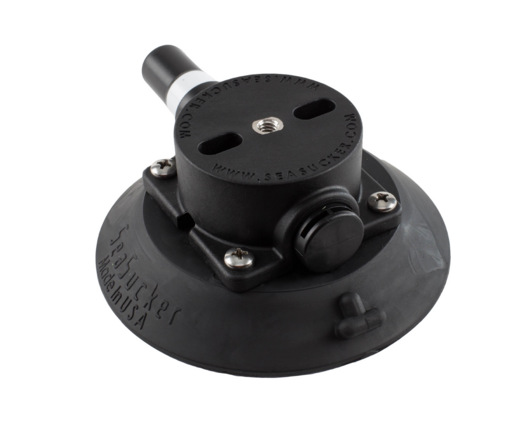

114mm SeaSucker Black Vacuum Mount

SeaSucker 114 mm Black Vacuum Mount

The SeaSucker 114 mm Black Vacuum Mount is an ideal way to mount accessories without drilling any holes! It is incredibly strong (pull-rated up to 45 kg; load-carrying capacity of 18 kg) and will attach to most non-skid or textured surfaces. Its built-in pump can generate a significant vacuum; coupled with a durable vacuum pad, it can maintain negative pressure for many days with the correct surface. Furthermore, the pump's orange indicator band serves as an early warning system, alerting when partial pressure is lost. A few pumps are all that is needed to return to maximum vacuum.

All metal parts are marine-grade stainless steel, including the pump spring, for extra durability in the saltwater environment. SeaSucker Vacuum Mounts have a cleverly designed housing enabling you to bolt almost anything to them.

The SeaSucker Vacuum Mount Housing

SeaSucker Vacuum Mounts have a cleverly designed housing enabling you to bolt almost anything to them. The housing is compatible with RAM products, video and photographic equipment via the centre ¼-20 stainless steel thread. You can attach accessories by using the centre stainless steel thread or the housing top slots for a secure connection, as shown below.

The housing is compatible with RAM Products using the RAM-B-202AU 1" Ball Base with 1/4-20 Centre thread or the RAM-202AU 1.5" Ball Base with 1/4-20 Centre thread. Alternatively, you can use the 1/4-20" stainless steel centre thread in the housing to attach most devices. Otherwise, the most secure method is to use the two slots on either side of the 1/4-20" stainless steel centre thread. The slots will accept 1/4" or M6 Bolts and Nuts

Like our motto says NO DRILLS! NO SCREWS!! NO PROBLEMS!!!

WHAT'S IN THE BOX?

1 x 114 mm SeaSucker Black Vacuum Mount
1 x 114 mm SeaSucker White Protective Cover
SeaSucker Vacuum Mount User Guide

We offer a 1 year, non-transferable warranty covering defects in materials and workmanship. The warranty covers the defective product only and can be returned within 1 year of the date of original purchase to Gear Campus for replacement or repair. This shall constitute the sole remedy of the purchaser and the sole liability of Gear Campus Pty Ltd to the extent permitted by law. In no event shall Gear Campus Pty Ltd be liable for special or consequential damages.

A sales receipt must accompany warranty claims. If your product fails due to a manufacturing or workmanship defect our first option will be to repair the item, free of charge. If the product is not repairable, or if the cost of repairing the item exceeds the cost of a new one, we will replace it. If the item has failed due to a manufacturing defect, we will pay the return shipping charges.

Product Features & Benefits

You will save money by not filling in holes every time; this can get very expensive!
The cost of maintaining our vacuum mounts is very low; every part is replaceable, and the pump is fully serviceable.
The one solution for many surfaces, including steel, aluminium, glass, fibreglass, painted plaster and some non-skid surfaces.
If you change your mind, you can relocate the 114 mm Vacuum Mount in seconds and leave no marks behind.
The 114 mm Vacuum Mount is truly multi-purpose; use the same mount in your car, boat, caravan or around the home.
Attach almost anything to the Vacuum Mount housing either through the ¼-20 centre thread or by using the top slots.
Secure your favourite video and still camera using the ¼-20 stainless steel threaded insert to capture that perfect photo or video.

**114 mm Vacuum Mount Specifications**
Maximum Pull Rating:	45 kg
Load Carrying Capacity:	18.14 kg
Vacuum Mount Diameter:	114 mm
Vacuum Mount Height when attached:	45 mm
Vacuum Mount Height when not in use:	52 mm
Housing Top Diameter:	60 mm
Housing Height Only:	33 mm
Housing Top Slot Width:	7 mm
Housing Top Slot Length:	14 mm
Housing Centre Thread:	¼-20

SKU	VM1001B
Barcode #	810046210208
Brand	SeaSucker
Shipping Weight	0.7000kg
Shipping Width	0.230m
Shipping Height	0.080m
Shipping Length	0.240m
Shipping Cubic	0.004416000m3
Unit Of Measure	ea
Assembled Length	0.240m
Assembled Height	0.080m
Assembled Width	0.230m
