Sidewinder Bolt-On Lay-Down Outrigger Holders

Ideal for boats with Hard Tops or T-Tops

$2,270.00
Only 3 Left!

More info.

Or BUY NOW with 4 interest-free fortnightly payments of $567.50 .




Free Shipping - $0.00

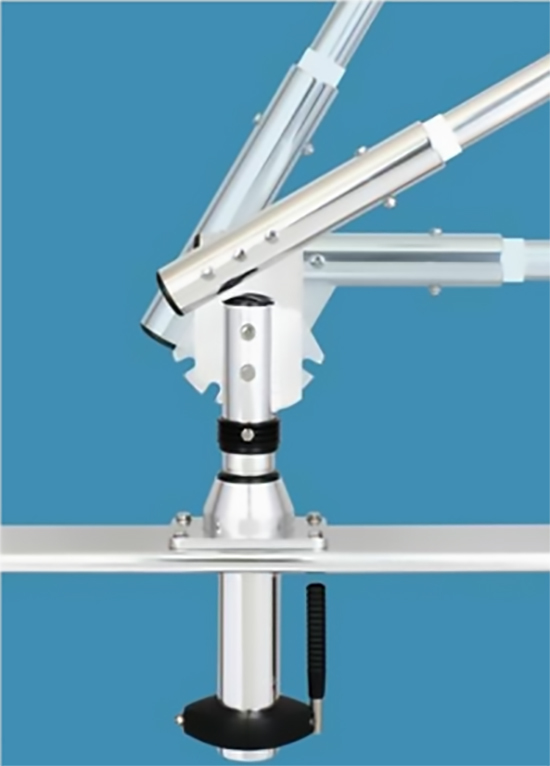

Lee's Tackle SW9300 Sidewinder Bolt-On Lay-Down Outrigger Mounts

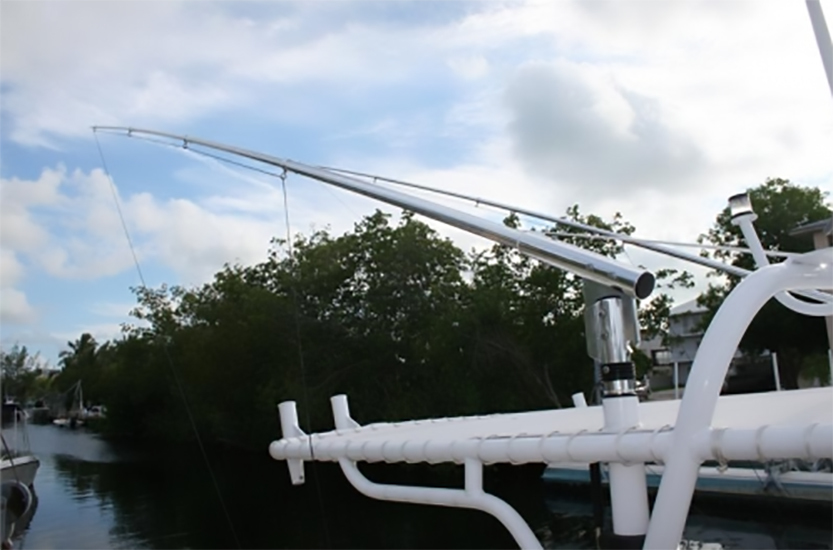

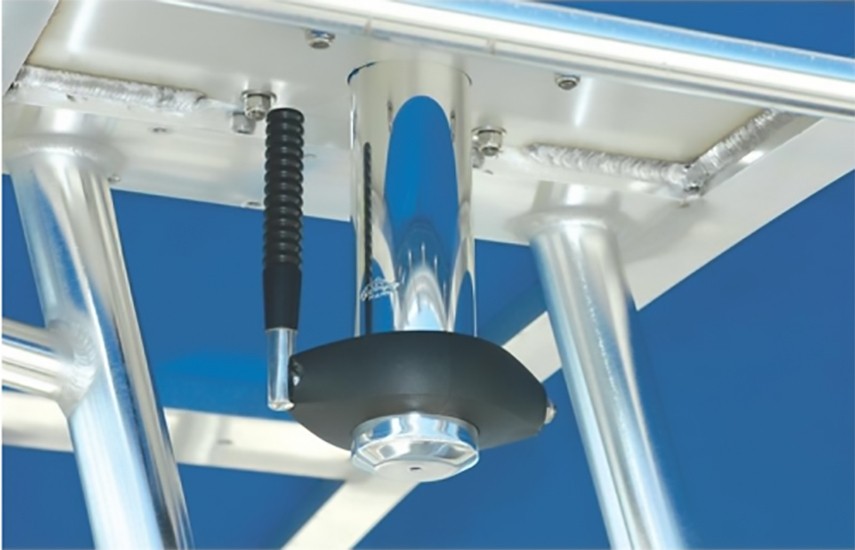

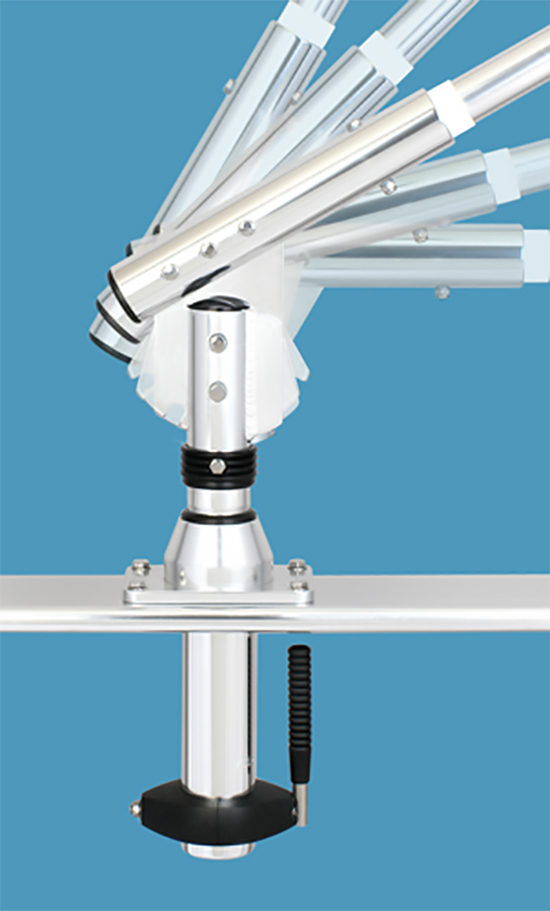

The Lee's SW9300 Sidewinder Bolt-On Lay-Down Outrigger Mounts are a below T-Top or Hardtop operation. The can be locked in from 0 through to 80 degrees out trolling position. The mounts lock when the handle is up or down and they rotate when the handle is to the left or right. By far the fastest lay-down outrigger mounts on the market.

The Lee's SW9300 Sidewinder Bolt-On Lay-Down Outrigger Mounts automatically lock into position when raising or lowering the pole with no knobs to loosen or tighten. Just pull down the ridged collar and lower or raise the pole. No ball bearings to rust with internal Delrin and nylon bearing surfaces to provide a smooth operation and prevent metal to metal contact. They are compatible with the Lee's 16ft Extra Strong (AP3916XS) or 18ft (AP3918) Outrigger Poles. Has 102 mm (4") x 152 mm (6") mounting plate. Extends 356 mm (14") above and 216 mm (8-1/2") below mounting plate. Fits all outrigger ready boats.

Cast from marine grade anodized aluminium in Bright Silver the Lee's Tackle SW9300 Sidewinder Bolt-On Lay Down Outrigger Mounts have proven to be an effective tool when trolling baits, both natural and artificial. They also look fantastic and are built to the same high standards of workmanship you come to expect from Lee's Tackle.

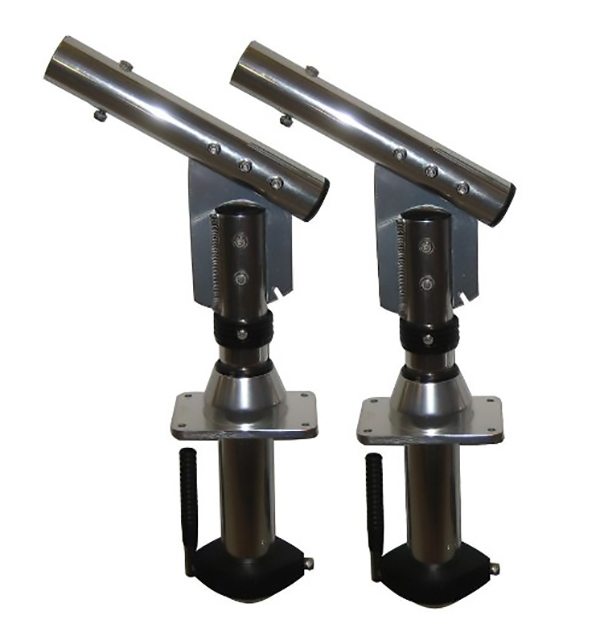

Please Note: This product is sold as a pair, includes two Lee's SW9300 Sidewinder Bolt-On Lay Down Outrigger Mounts. The Lee's SW9901 Backing Plate is not included.

WHAT'S IN THE BOX?

1 x Pair of Lee's Tackle SW9300 Sidewinder Bolt-On Lay-Down Outrigger Mounts (two outrigger mounts in the box)

(SW9300)

Lee's Tackle SW9300 12ft Sidewinder Bolt-On Lay-Down Outrigger Mounts
Height below mounting plate when lowered: 216 mm (8.5")
Height below mounting plate when raised: 356 mm (14")
Mounting Plate Length: 152 mm (6")
Mounting Plate Width: 102 mm (4")
Minimum Trolling Position Angle: 0 Degrees
Maximum Trolling Position Angle: 80 Degrees













SKU SW9300
Barcode # 096811930001
Brand Lee's Tackle
Shipping Weight 10.0000kg
Shipping Width 0.340m
Shipping Height 0.240m
Shipping Length 0.670m
Unit Of Measure ea

We offer a 1 year, non-transferable warranty covering defects in materials and workmanship. The warranty covers the defective product only and can be returned within 1 year of the date of original purchase to Gear Campus for replacement or repair. This shall constitute the sole remedy of the purchaser and the sole liability of Gear Campus Pty Ltd to the extent permitted by law. In no event shall Gear Campus Pty Ltd be liable for special or consequential damages.

A sales receipt must accompany warranty claims. If your product fails due to a manufacturing or workmanship defect our first option will be to repair the item, free of charge. If the product is not repairable, or if the cost of repairing the item exceeds the cost of a new one, we will replace it. If the item has failed due to a manufacturing defect, we will pay the return shipping charges.
