1 x ICE Ignition DIY Pro 100 9 mm Lead - Universal; select your preferred Coil Boot & Terminal

PLEASE NOTE: You MUST have purchased a set of ICE Ignition Pro 100 9 mm Leads. We do not recommend this DIY single-lead kit if you are using a different set of leads, as it will most likely cause a mismatch in lead resistance.

Need to replace the coil lead in your ICE Ignition Pro 100 9 mm leads? Do you have access to a set of lead crimpers (either ICE Ignition, MSD lead crimpers, or similar)?

Introducing the ICE Ignition DIY Single Lead Coil Kit. Your choice of Coil Boot is already terminated and fitted to an overall lead length of 1,000 mm. Just trim off the excess ignition lead core to suit, then fit the distributor terminal and boot

The ICE Ignition Pro 100 Ignition Lead will suit all engines with:

  • Male Post DistributorMALE Post Distributor            Male Post Coil MALE Post Coil
  • 90-degree Distributor Boot

The ICE Ignition DIY Pro 100 Series Coil Lead / Plug Wire is a partially finished coil lead; one end is terminated, and the boot is fitted. The kit includes plugs and terminals required to finish the lead. To finish the lead, all you have to do is:

  1. Install the finished end on your engine.
  2. Route your ignition lead/plug wire to create the perfect look.
  3. Trim the lead to the required length.
  4. Complete the installation of the terminals and boots as per the provided instructions.

If you don't have a crimper, we recommend buying the ICE Ignition 2700 Plug Wire Crimpers. They fit the ICE Ignition 8 mm & 9 mm leads and deliver a perfect cut, strip, and crimp every time. They are available as an option when you purchase your leads. Included in the kit are a set of numbered plug wire markers with an easy-to-install tool. This ensures correct ignition lead & spark plug installation. Alternatively, the MSD Lead crimpers are sufficient to complete the installation

WHAT'S IN THE BOX?

  • 1 x 1,000 mm ICE Ignition Pro 100 Series Coil Lead
  • 1 x pre-fitted Coil Boot and Terminal

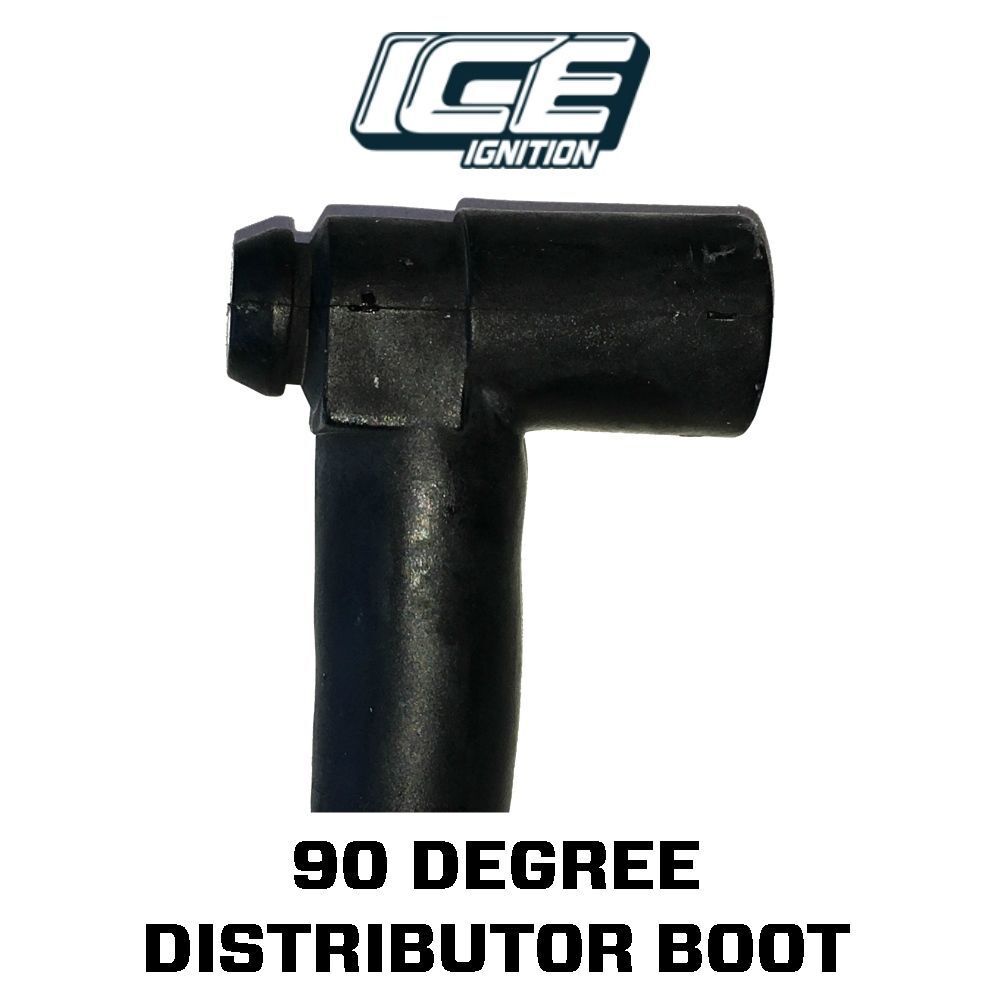

  • 1 x 90-degree Distributor Terminal and Boot to suit a Male Post Distributor Cap
  • Instruction Sheet

We offer a 3 year, non-transferable warranty covering defects in materials and workmanship if properly installed. If installation instructions have been followed and the product is found to be defective, Gear Campus will replace or arrange for repair if returned along with proof of purchase. This shall constitute the sole remedy of the purchaser and the sole liability of Gear Campus Pty Ltd to the extent permitted by law. The foregoing is exclusive and in lieu of all other warranties or representations whether expressed or implied, including any implied warranty of merchanability or fitness. In no event shall Gear Campus Pty Ltd be liable for special or consequential damages. Products must be returned as originally supplied. Warranty is void if products have been modified or tampered with in any way or installation instructions are not followed.

Product Features & Benefits

The ICE Ignition Pro 100 Lead set features:

  • Spiral wound copper alloy core
  • Ultra-low resistance of 100 ohms per metre
  • Delivers maximum spark and duration for improved performance.
  • Built-in Radio Frequency Interference (RFI) minimization.
  • All boots made from extreme temperature silicone to withstand high temperatures.
  • Premium "Snap Lock" stainless steel Spark Plug, Distributor Cap & Coil fittings.
  • Numbered Lead Markers with easy to install tool to ensure correct lead fitment
  • Ready to Install Lead Set. No cutting or terminating of leads required.
SKU 9MMCLU
Brand ICE Ignition
Shipping Weight 2.2000kg
Shipping Width 0.280m
Shipping Height 0.070m
Shipping Length 0.210m
Unit Of Measure ea
