7 AMP 2 STEP DELUXE Ignition Kit -  Chrysler Big Block 383ci V8, N.A.

This ICE Ignition kit suits the Chrysler BB 383ci V8 engines running a carburettor with no forced induction or nitrous. It is the ideal kit for most street and race engines.

The ICE Ignition "Digital Inductive Spark" technology delivers the most powerful spark and longest duration of any ignition system. More spark means greater tuneability, which ultimately leads to improved performance.

ICE IGNITION DELUXE KIT - Includes ICE 2316 Voltage Booster

Included with our ICE Ignition Kits to suit Carburettored engines is the ICE Ignition 2316 Voltage Booster. Capable of delivering 16 volts regardless of the quality of your car's electrical system, the ICE Ignition 2316 Voltage Booster is a simple "Plug & Play" device. Just plug it into the ICE Ignition wiring loom, and the voltage booster will do the rest.

The ICE Ignition, 7 AMP DELUXE Street Kit with ICE 2316 Voltage Booster, ensures 16 volts are supplied to the ignition system. With 16 volts on tap at all times, this also ensures the broadest tuning window for your engine. The ICE 2316 Voltage Booster ensures maximum spark is delivered to the spark plug while opening up more tuning options via the ICE Ignition 7 AMP Series Control Box.

The ICE Ignition 7 AMP 2-STEP Control Box

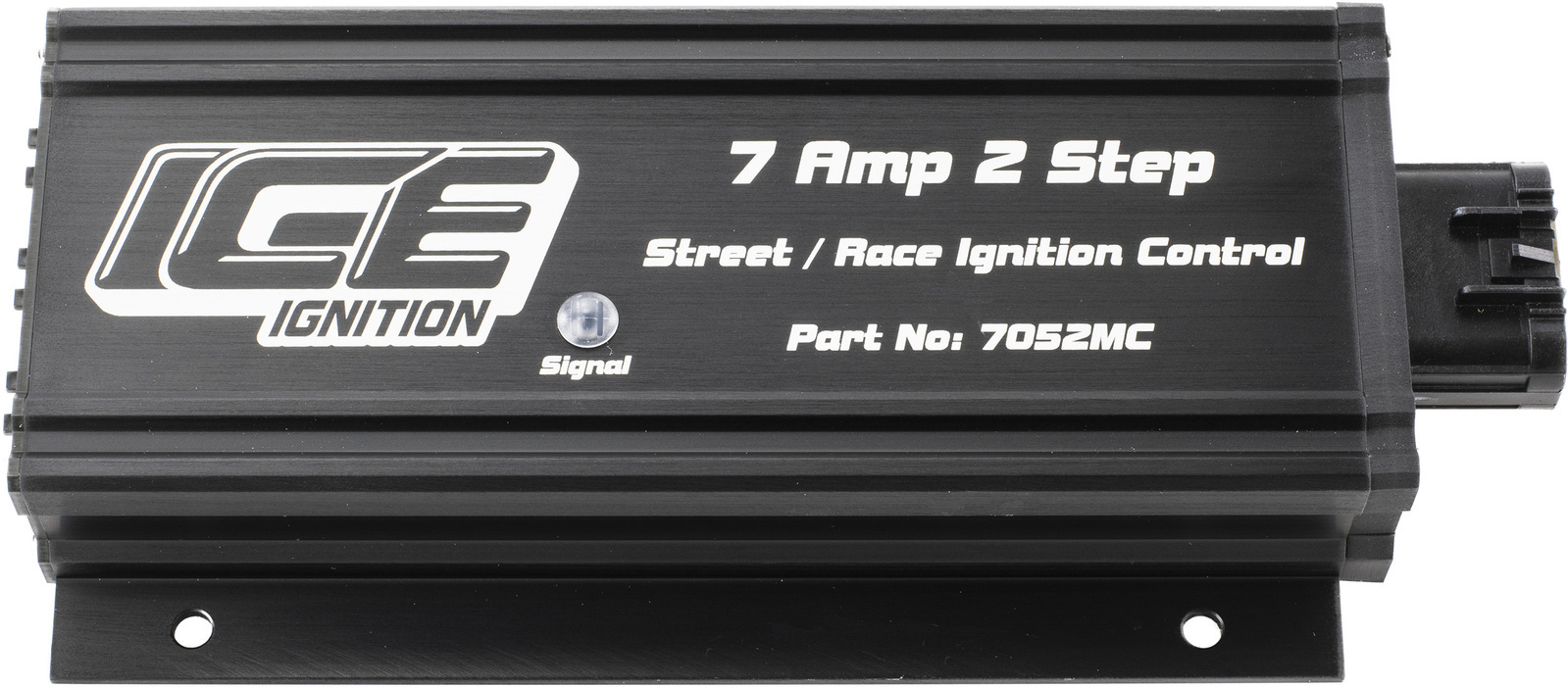

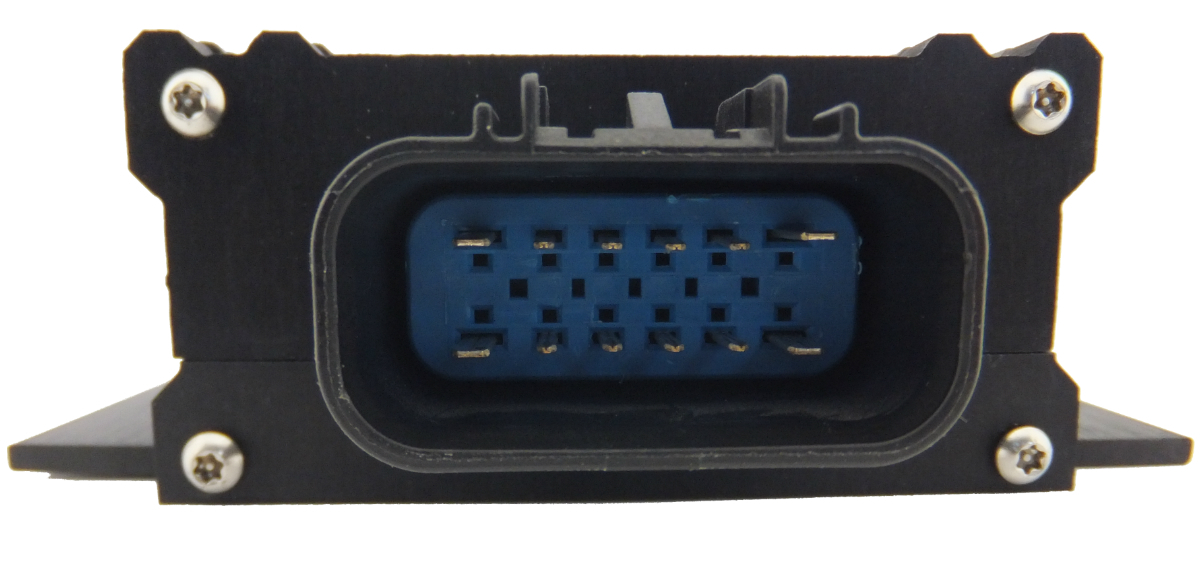

ICE Ignition 7 AMP 2-Step Control Box   ICE Ignition 7 AMP 2-Step Control Box - Front View  ICE Ignition 7 AMP 2-Step Control Box Rear View

The ICE Ignition 7062MC Street / Race Series Control Box features the following.

  1. 128 Pre-programmed ignition curves - 128 push-button selectable curves enable real-time timing adjustment. It eliminates the need for distributor re-graphing when engine upgrades are introduced. It allows you to adjust the timing for changes in fuel quality. The tuning potential is almost endless, with 128 timing curves at your disposal.

  2. MAX REV Limiter - A push-button selectable rev limiter that can be adjusted in 100 RPM increments. It provides great insurance against accidentally over-revving your engine by cutting out the spark.

  3. 2-STEP Rev LimiterThis push-button selectable rev limiter can be adjusted in 100 RPM increments. It only becomes active when 12 volts are applied to the white wire in the ignition wiring loom. When active, the 2-STEP takes precedence over the Max REV Limiter. It's ideal if you have a trans brake or launch control, or it could be used as a Valet Mode.

The ICE Ignition controller must be mounted inside your car, not in your engine bay.

ICE Ignition strongly recommends the use of non-resistor Spark Plugs. If you require assistance with spark plug selection, please call us at 1300 722 580.

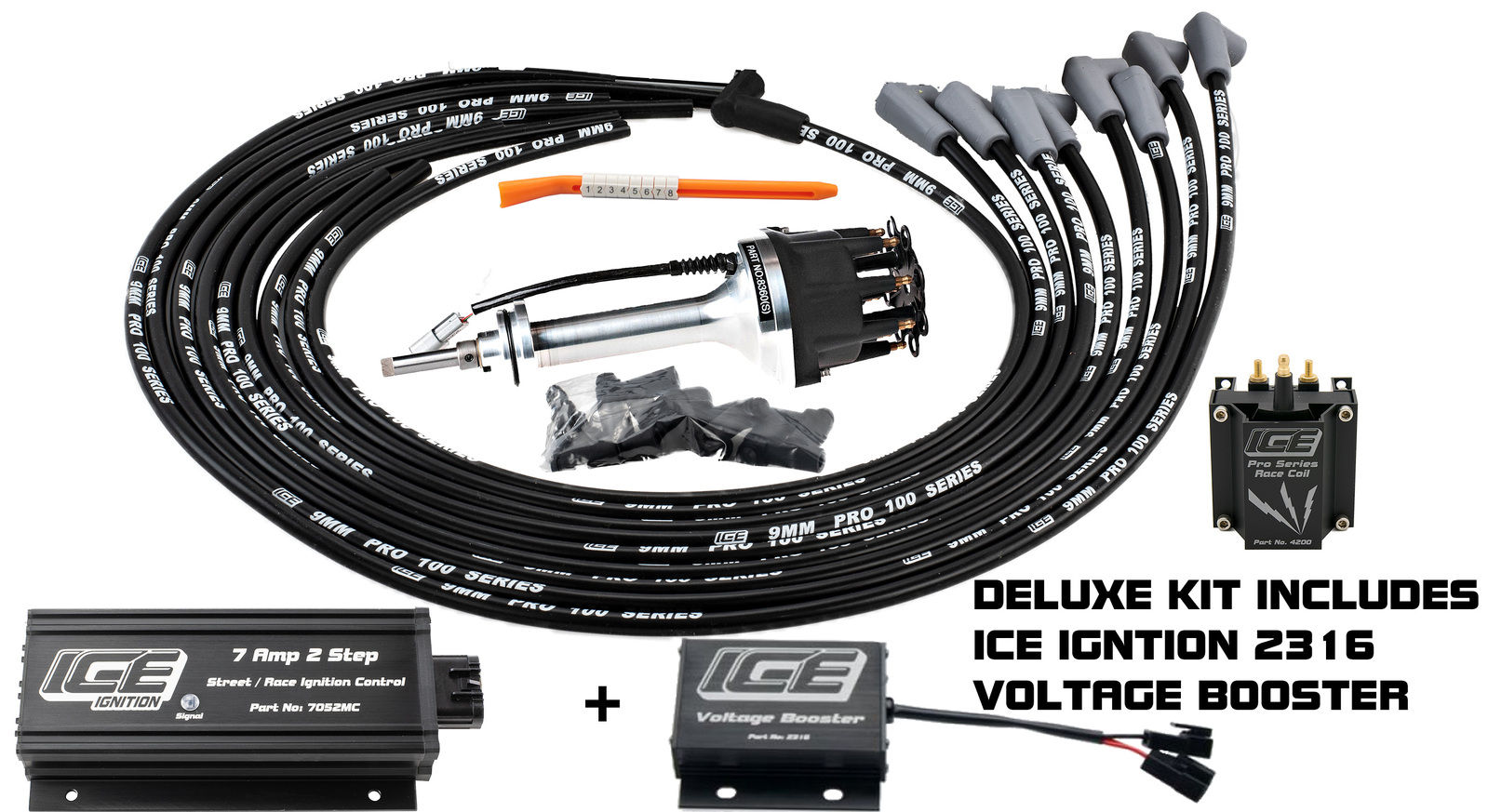

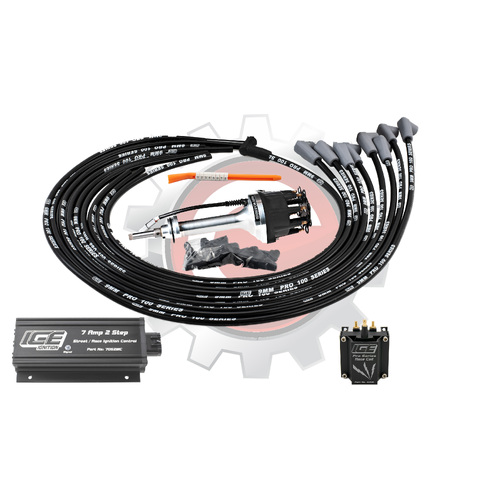

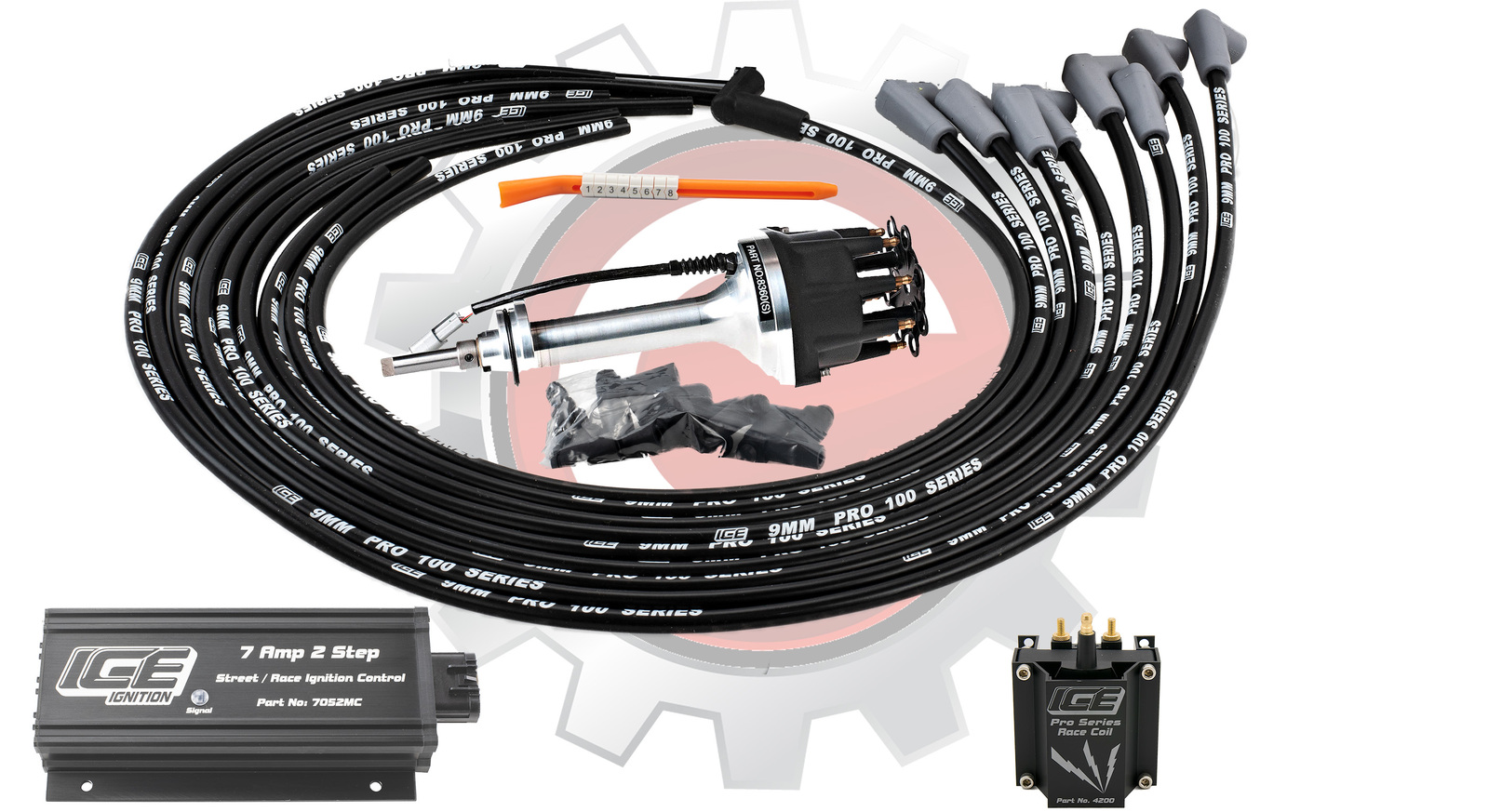

What's in the ICE Ignition Kit?

This ignition kit includes the following

  1. 7062MC Controller - 128 pre-defined push-button selectable timing curves, push-button selectable MAX REV & 2-STEP Rev Limiters.

  2. 2316 Voltage Booster - Ensures 16 Volts are being delivered to the ignition system at all times

  3. ICE Ignition Billet Distributor - The ICE Ignition Distributor uses a “Hall Effect Sensor”  to communicate with the ICE Control Box. It will not work unless it's connected to an ICE Control Box. Please select from the following options:

    • SMALL-CAP DistributorA SMALL (4" diameter) CAP Distributor is supplied by default

    • If you prefer a LARGE-CAP distributor (5" Diam.), please include the following in the Customer Comments section during checkout: "Please supply this kit with a LARGE-CAP distributor. "This is a NO-COST option.

  4. ICE Ignition 9MMRBCU Pro 100 9 mm DIY Lead SetA partially finished lead set is supplied as it is challenging to supply a finished set of leads due to tight fitment around the engine. This lead set is supplied with 8 x 90-degree and 8 x Straight Spark Plug Boots for the perfect fit. The leads are cut extra long. Lead crimpers are required.

  5. ICE Ignition 4200 Pro Series Race Coil - With twice the energy of a standard coil, the ICE Ignition 4200 Coil is the ideal coil for naturally aspirated engines.

  6. Wiring LoomThe ICE Ignition wiring loom is approximately 2 metres long and easy to install. The included instructions detail what is required to connect the ICE Ignition system to your car. If you require a longer wiring loom, please call us on 1300 722 580.

We offer a 3 year, non-transferable warranty covering defects in materials and workmanship if properly installed. A 2-year warranty applies where the product is being used primarily in a racing application. If installation instructions have been followed and the product is found to be defective, Gear Campus will replace or arrange for repair if returned along with proof of purchase. This shall constitute the sole remedy of the purchaser and the sole liability of Gear Campus Pty Ltd to the extent permitted by law.

The foregoing is exclusive and in lieu of all other warranties or representations whether expressed or implied, including any implied warranty of merchantability or fitness. In no event shall Gear Campus Pty Ltd be liable for special or consequential damages. Products must be returned as originally supplied. Warranty is void if products have been modified or tampered with in any way or installation instructions are not followed.

Product Features & Benefits

* You will save money by not having to re-graph your distributor every time you upgrade your engine.

* More spark and duration delivers greater tune-ability leading to improved performance.

* MAP sensor delivers improved fuel economy under cruising conditions.

* Avoid engine pinging scenarios through bad fuel by instantly adjusting your engine's timing.

* Rev limiter provides insurance against over-revving saving you thousands of dollars in unwanted engine repairs.

* Three Year Warranty for street applications, Two Year Warranty for race applications

ICE Ignition 7 AMP 2 STEP Kit -  Chrysler BB 383 V8

Engine Type: Chrysler BB V8 (383ci)
Fuel Delivery: Carburettor(s) - including Electronic Carburettor(s)
Engine Setup:​ Naturally Aspirated
Controller: 7 AMP 2-STEP
Controller Features: 128 curves, 2-Step & Max REV Limiters
Wiring Loom: Included, approx 2 meters
Distributor Diameter: Approx 4"
Distributor Triggering: Hall Effect Sensor
Distributor Shaft: 4130 Chromoly
Distributor Cap Type: HEI / MALE Post
Dist. Plug Wire Retainer: Included
Spark Plug Boot Type:    8 x 90-Degree & 8 x Straight Spark Plug Boots
Ignition Lead Diameter: 9 mm
Coil Type:  ICE Ignition 4200
Lead Markers & install tool: Included





















SKU IK72NVSNRBCU-DK
Barcode # 2000000004907
Brand ICE Ignition
Shipping Weight 9.2000kg
Shipping Width 0.460m
Shipping Height 0.380m
Shipping Length 0.380m
Shipping Cubic 0.066424000m3
Unit Of Measure ea
